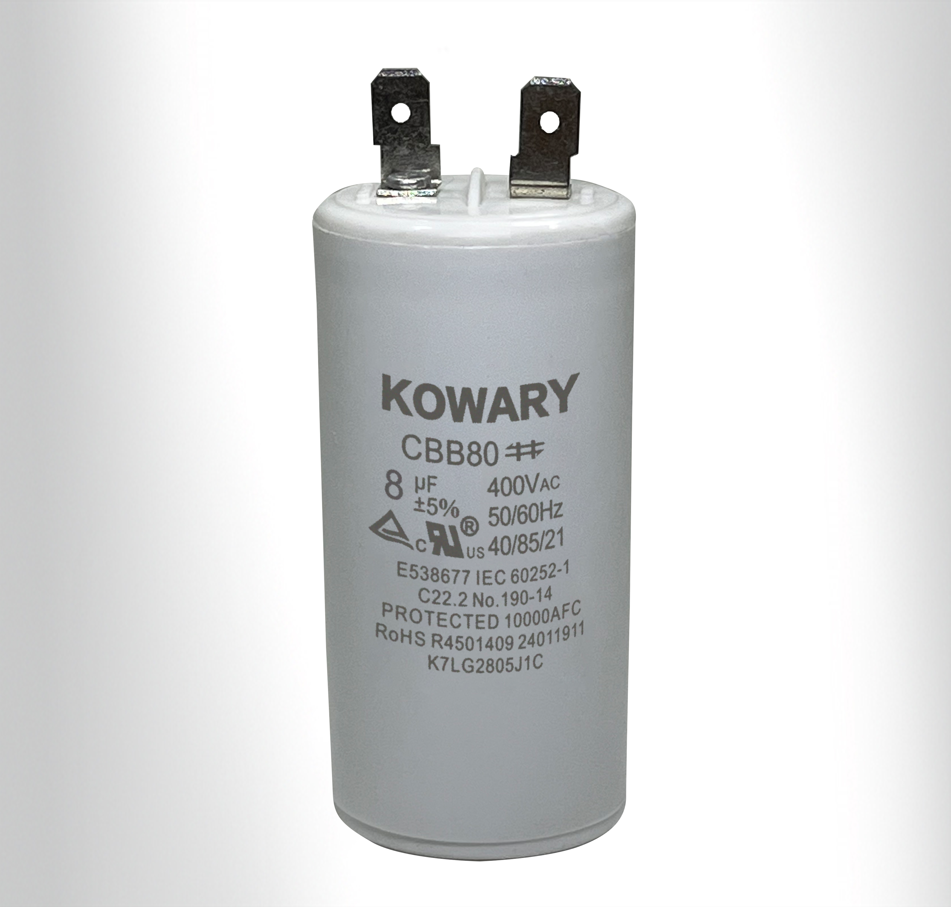

CBB80 (K7L) 金属化聚丙烯膜交流电动机电容器（圆柱形/塑料外壳）
■General Technical Characteristics 一般特性
Self-healing property
良好的自愈性
Excellent stable performance and reliability
性能稳定、可靠性强
■Electrical Characteristics 电气特性
Reference Standard 引用标准: | GB/T 3667.1 (IEC60252-1) |
Climatic Category 气候类别: | 40/70/21, 40/85/21, 40/105/21 |
Rated Voltage 额定电压: | 110VAC ~ 600VAC |
Capacitance Range 电容量范围: | 5.0µF ~ 40.0µF |
Capacitance Tolerance 电容量偏差: | ±5% (J), ±10%(K) |
Dissipation Factor 损耗角正切: | ≤0.25% Measured at 100Hz |
Test Voltage 耐电压: | Between Terminals: 2xUN (2S) Between Terminals to Case: 2 000VAC or 2UN +1 000VAC (60S) |
Maximum Permissible Voltage 最高运行电压: | 1.1U N |
Maximum Permissible Current 最高运行电流: | 1.3IN |
