AFM (K9M) Three Phase AC Filter Capacitor for Power Factor Correction
■GENERAL TECHNICAL CHARACTERISTICS 技术特性
Reference standards 参考标准 IEC 61071, IEC 60068
Dielectric 介质材料 Polypropylene film
Construction 封装结构 Dry construction, non-inductive type
Case 外壳材料 Aluminum case
Output 引出端 Threaded insert M8 or M10, Lead screw M8
■ELECTRICAL CHARACTERISTICS 电气特性
Operating temperature 工作温度范围 - 40 to + 85 ℃
Capacitance range 容量范围 3 x 20 to 3 x 500 μF
Rated voltage range 额定电压 400 to 1000 Vac
Capacitance tolerance 容量偏差 ± 5%, ± 10%
Dissipation factor 损耗角正切 ≤2.0×10-3 Measured at 100 Hz and 20±5℃
Self inductance 自感系数 ≤100nH
Life expectancy 预期寿命 30,000 hours at Urms and 70 ℃(Hot-spot temperature)
■TEST METHODS AND PERFORMANCES 测试方法
Dielectric strength 介质强度 1.5×Urms applied to 10s at 20±5 ℃
Test voltage terminal to case 端壳耐压 3KVAC/50Hz for 10s
Insulation resistance(IR*CN) 绝缘电阻 ≥ 5000s but need not exceed 30GΩ,
after 1 minute of electrification at 100VDC (20±5℃)

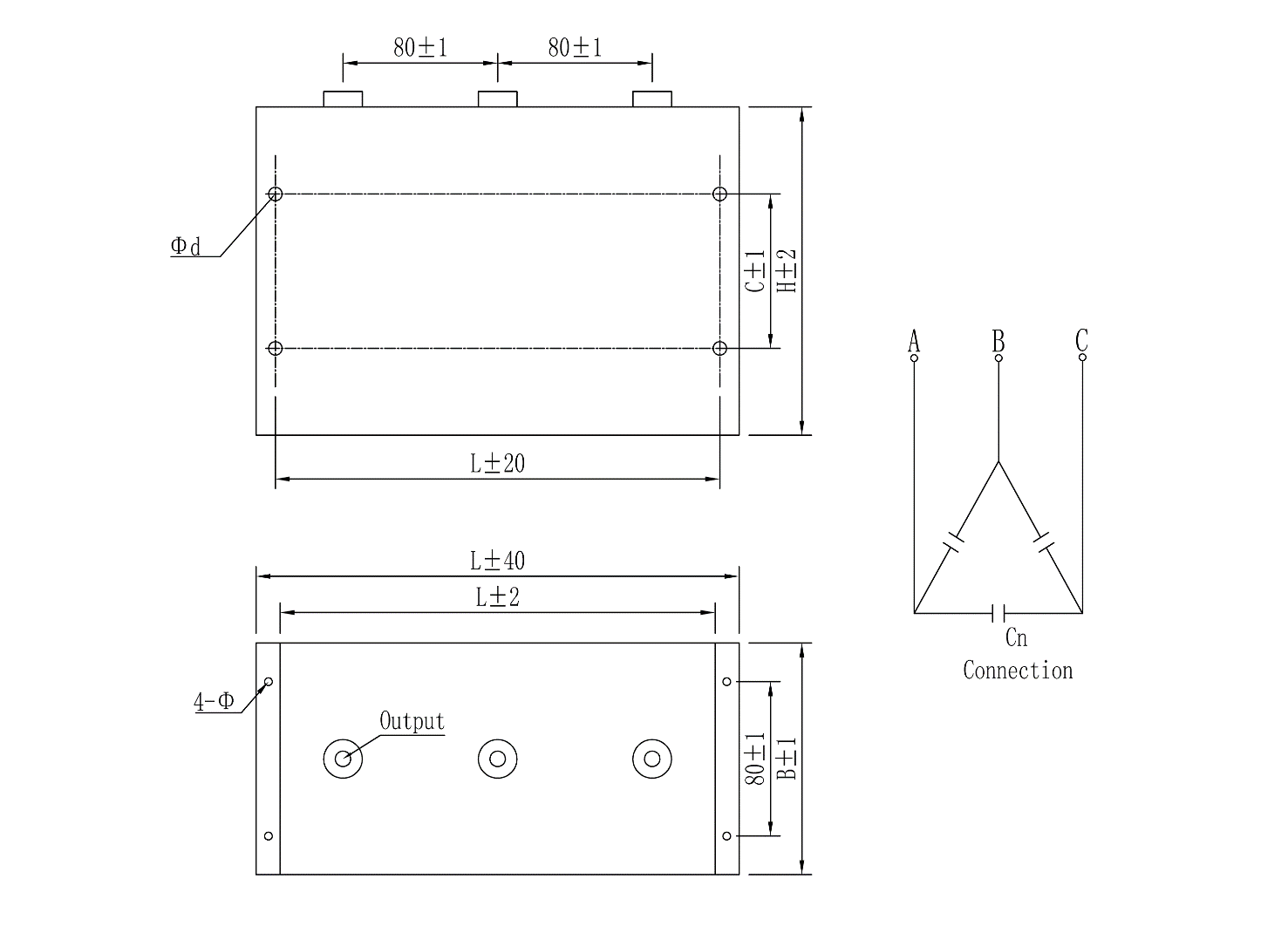

■OUTLINE DRAWING 外形图
■Case code: Unit: mm
Case code | L | B | H | C | d | Output | Torque |
A4 | 225 | 120 | 170 | 80 | 7 | M8 x 10 | 8.5 N.M Max |
A5 | 225 | 120 | 235 | 100 | 7 | M8 x 10 | 8.5 N.M Max |
A6 | 295 | 120 | 235 | 100 | 9 | M10 x 10 | 12 N.M Max |
A7 | 365 | 120 | 235 | 120 | 9 | M10 x 10 | 12 N.M Max |
■ELECTRICAL SPECIFICATION 规格型号参考 Unit: mm
Part Number | Capacitance (μF) | ESR @1.0KHz (mΩ) | Imax @45℃ @10KHz (A) | Case code | Rth (K/W) | Weight (Kg) |
Urms 400Vac, Upeak 565V | ||||||
K9M401A207KS##D*** | 3×200 | 3×0.95 | 3×90 | A4 | 1.1 | 6.2 |
K9M401A307KS##D*** | 3×300 | 3×0.88 | 3×115 | A5 | 0.9 | 8.7 |
K9M401A407KS##D*** | 3×400 | 3×0.83 | 3×155 | A6 | 0.7 | 11.2 |
K9M401A507KS##D*** | 3×500 | 3×0.80 | 3×160 | A7 | 0.6 | 14.5 |
Urms 500Vac, Upeak 710V | ||||||
K9M501A127KS##D*** | 3×120 | 3×1.01 | 3×65 | A4 | 1.1 | 6.2 |
K9M501A187KS##D*** | 3×180 | 3×0.92 | 3×90 | A5 | 0.9 | 8.7 |
K9M501A247KS##D*** | 3×240 | 3×0.86 | 3×130 | A6 | 0.7 | 11.2 |
K9M501A307KS##D*** | 3×300 | 3×0.83 | 3×155 | A7 | 0.6 | 14.5 |
Urms 550Vac, Upeak 780V | ||||||
K9M551A906KS##D*** | 3×90 | 3×1.86 | 3×65 | A4 | 1.1 | 6.2 |
K9M551A1356KS##D*** | 3×135 | 3×1.49 | 3×80 | A5 | 0.9 | 8.7 |
K9M551A187KS##D*** | 3×180 | 3×1.28 | 3×105 | A6 | 0.7 | 11.2 |
K9M551A2256KS##D*** | 3×225 | 3×1.19 | 3×130 | A7 | 0.6 | 14.5 |
Urms 690Vac, Upeak 975V
| ||||||
K9M691A506KS##D*** | 3×50 | 3×2.03 | 3×55 | A4 | 1.1 | 6.2 |
K9M691A756KS##D*** | 3×75 | 3×1.64 | 3×80 | A5 | 0.9 | 8.7 |
K9M691A107KS##D*** | 3×100 | 3×1.39 | 3×105 | A6 | 0.7 | 11.2 |
K9M691A1256KS##D*** | 3×125 | 3×1.28 | 3×130 | A7 | 0.6 | 14.5 |
Urms 850Vac, Upeak 1200V | ||||||
K9M851A306KS##D*** | 3×30 | 3×2.36 | 3×40 | A4 | 1.1 | 6.2 |
K9M851A456KS##D*** | 3×45 | 3×1.85 | 3×65 | A5 | 0.9 | 8.7 |
K9M851A656KS##D*** | 3×65 | 3×1.50 | 3×95 | A6 | 0.7 | 11.2 |
K9M851A806KS##D*** | 3×80 | 3×1.38 | 3×105 | A7 | 0.6 | 14.5 |
Urms 1000Vac, Upeak 1410V | ||||||
K9M102A206KS##D*** | 3×20 | 3×2.68 | 3×30 | A4 | 1.1 | 6.2 |
K9M102A306KS##D*** | 3×30 | 3×2.07 | 3×55 | A5 | 0.9 | 8.7 |
K9M102A456KS##D*** | 3×45 | 3×1.63 | 3×65 | A6 | 0.7 | 11.2 |
K9M102A556KS##D*** | 3×55 | 3×1.43 | 3×95 | A7 | 0.6 | 14.5 |
Remark: 1. ## Output and case code; *** Internal code.
2. Customization for special specification and requirement is available.
