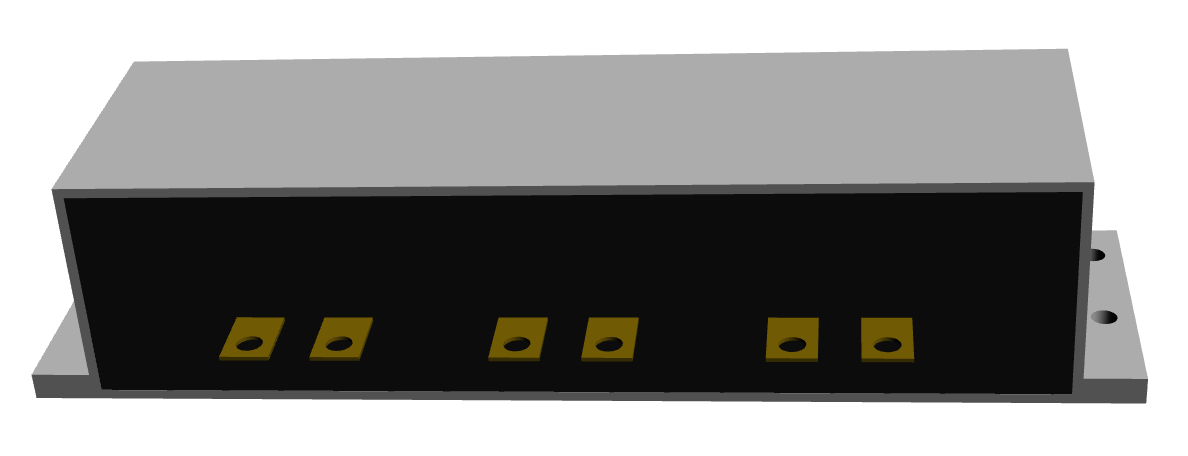

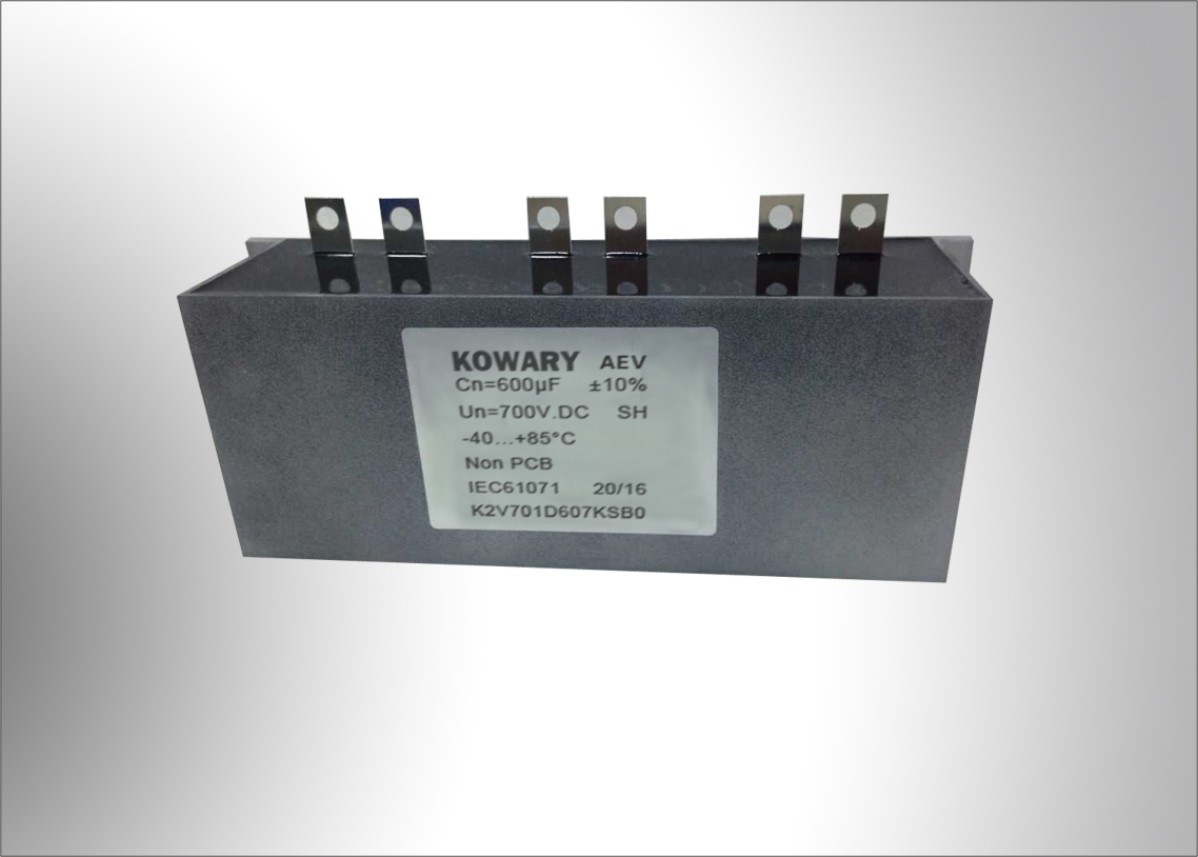

■GENERAL TECHNICAL CHARACTERISTICS 技术特性

Reference standards 参考标准   IEC 61071

Dielectric 介质材料             Polypropylene film

Case 外壳材料                Solvent resistant plastic case, resin filled

Output 引出端                 Lugs

■ELECTRICAL CHARACTERISTICS 电气特性

Operating temperature 工作温度范围    - 40 to + 105 ℃ (hotspot temperature)

Capacitance range 容量范围           Customization

Rated voltage range 额定电压          450 to 2200 Vdc

Capacitance tolerance 容量偏差        ± 5%

Dissipation factor 损耗角正切          ≤3.0×10^-3 Measured at 100 Hz and 20±5℃

Life expectancy 预期寿命              100,000 hours at U_NDC and 70 ℃(Hot-spot temperature)

■TEST METHODS AND PERFORMANCES 测试方法

Dielectric strength 介质强度            1.5×U_NDC applied to 10s at 20±5 ℃

Test voltage terminal to case 端壳耐压   1.5U_N+1000VAC /50Hz for 60s

Insulation resistance(IR*C_N) 绝缘电阻    ≥ 30000s but need not exceed 30GΩ,

after 1 minute of electrification at 100VDC (20±5℃)

■OUTLINE DRAWING 外形图

■ELECTRICAL SPECIFICATION 规格型号参考                                                        Unit: mm

Remark: 1. *** Internal code.

      2. Customization for special specification and requirement is available.
