■GENERAL TECHNICAL CHARACTERISTICS 技术特性

Reference standards 参考标准   IEC 60110.1

Dielectric 介质材料             Polypropylene

Characteristics 特性            Low DF, low ESL and low ESR,

                                            High Voltage, high frequency and high Dv/dt.

                                            High current Resistance, excellent heat dissipation

Application应用                  Widely used in high power and high frequency resonant devices.

■ELECTRICAL CHARACTERISTICS 电气特性

Operating temperature 工作温度范围    - 40 to + 85 ℃

Capacitance range 容量范围           0.1 μF to 85 μF

Rated voltage range 额定电压          100 kVar to 1500 kVar

Capacitance tolerance 容量偏差        ± 5%, ± 10%

Dissipation factor 损耗角正切          ≤5×10^-4 Measured at 1000 Hz and 25±5℃

Life expectancy 预期寿命              100,000 hours at U_N and 70 ℃ 30,000h at Urms

■TEST METHODS AND PERFORMANCES 测试方法

Test voltage between terminals          1.5×U_NAC applied to 10s at 25±5℃

两端耐压                             3.5×U_NDC applied for 10s at 25±5℃

Insulation resistance(IR*C_N)  绝缘电阻   ≥ 3000s 60s at 100Vdc (20±5℃)

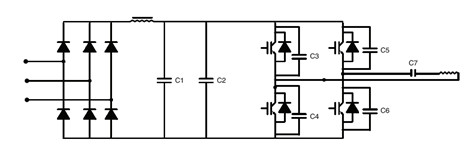

■Typical Circuit 典型电路

               C7 is the water-cooled capacitor in the series resonant capacitor
